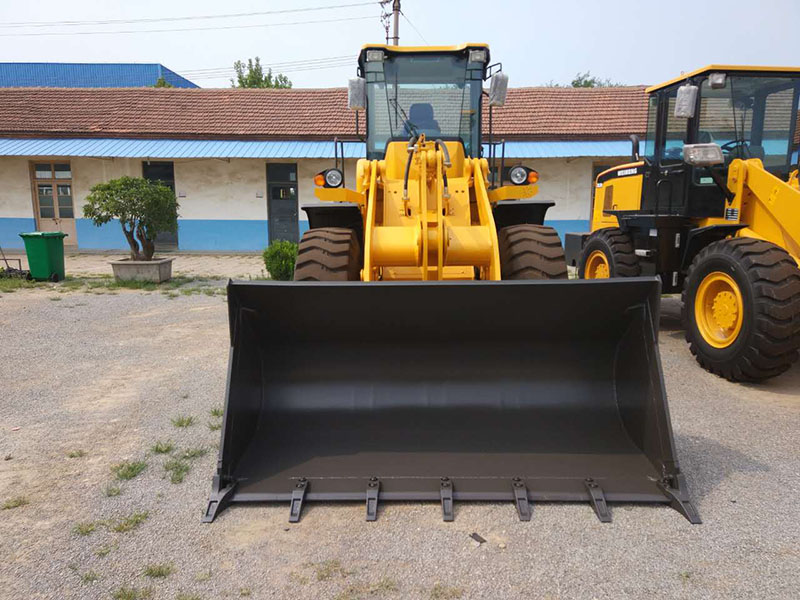

SHANMON948裝載機

山東威猛工程機械有限公司

公司地址:山東省青州市南環路9567號

2019-12-7 988

信息詳情

1、采用中央鉸接式車架,轉彎半徑小,機動靈活,側向穩定性好,便于在狹窄場地作業。Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2、人性化設計,視野寬闊,駕駛舒適。Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、采用了氣頂油鉗盤式四輪制動系統保證行車安全,制動平穩,安全可靠;駐車采用鉗盤式制動Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、采用全液壓轉向,動力換檔變速,工作裝置液壓操縱,整機操作輕便靈活,動作平穩可靠。Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

5、雙泵合流和同軸流量放大系統提高了工作效率和經濟性Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

6、折疊式大側門鋼結構發動機罩,美觀大方,維修方便

The big loading engine side covers made in steel are of good appearance and suitable for maintenance

7、先導控制使操作更靈活舒適

Pilot hydraulic implement controls make operate easy and comfortable

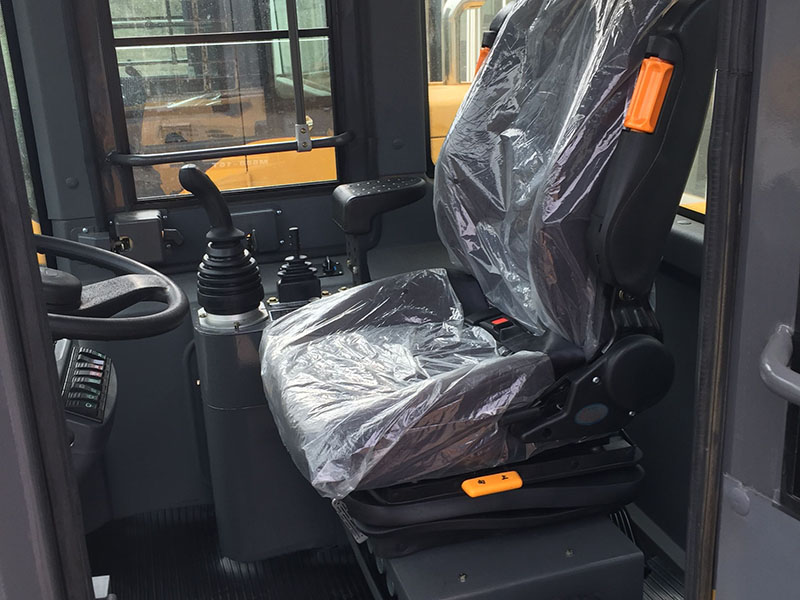

c cab, ergonomic design, pilot handle, large seat.


 先進的冷卻系統:水溫、油溫實現較佳的熱平衡,提高部件及油品壽命,延長整機使用壽命。Advanced cooling system: water temperature, oil temperature to achieve the best thermal balance, improve the life of components and oil products, extend the service life of the entire machine.

Performance

1

額定載重量      rated loading

4000kg

2

整機重量           overall weight

11000kg

3

斗容量             bucket capacity

2.0-2.5m3

4

最大牽引力         maximum traction force

95KN

5

最大掘起力         maximum breakout force

127KN

6

最大爬坡能力       maximum grade ability

30℃

7

最大卸載高度       maximum dump height

3100mm

8

最大卸載距離       maximum dump reach

1100mm

9

整機外形尺寸       overall dimension (L×W×H)

7130*2500*3340mm

10

最小轉彎半徑       minimum turning radius

6400mm

發動機Engine

11

型號model

DF Cummins 6BTA5.9-C180

12

型式type

水冷、四沖程、直噴、增壓

13

汽缸數No.    of Cylinder

6

14

額定功率           rated power

132kw—2200r/min

15

最大扭矩           maximum torque

750N.m/1300rpm



16

最低燃油消耗率min.    fuel-consume ratio

≦210Kw    h

傳動系統

     Transmission system

17

變矩器型式         torque converter

YJ315-X

18

變速箱型式         gearbox mode

定軸常嚙合式Fixed axis constant mesh type

19

檔位數             gears

前進檔4個,倒退檔2個

     4    forward  2 reverse

20

最高車速           maximum speed

45km/h

驅動橋Drive axles

21

主減速式:       main reducing spiral

螺旋傘齒輪一級減速bevel    gear grade 1reduction

22

輪邊減速型式       decelerating mode

一級行星減速

     Planetary    reduction grade 1

23

軸距               wheel base (mm)

2900mm

24

輪距               wheel tread

1830mm

25

最小離地間隙       ground clearance

400mm

液壓系系統

     Hydraulic system

26

系統工作壓力       system working pressure

16,5MPa

27

動臂提升時間       boom lifting time

4.83

28

三項和             total time

9.85±0.5s

制動系統

     Brake system

31

行車制動           service brake

氣頂油鉗盤式四輪制動

     air    assist disc brake on 4 wheels

32

駐車制動           parking brake

手動嵌盤式

     Manual    disk brake

輪胎

     Tyre

33

規格               type specification

20.5-25

34

前輪氣壓           front tyre pressure

0.4Mpa

35

后輪氣壓           rear tyre pressure

0.35Mpa
