SHANMON966裝載機

SHANMON966裝載機

山東威猛工程機械有限公司

公司地址:山東省青州市南環路9567號

2019-12-7 1054

信息詳情

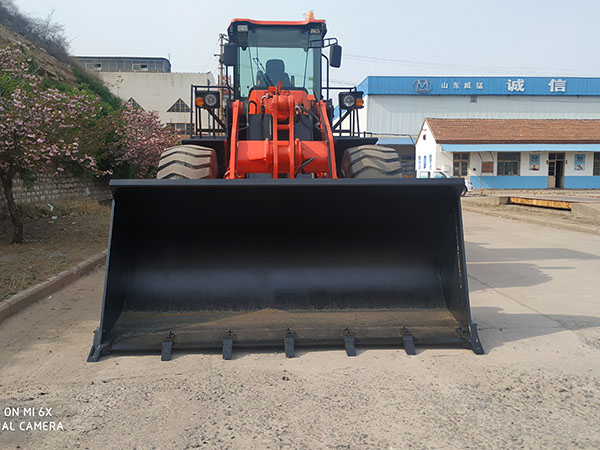

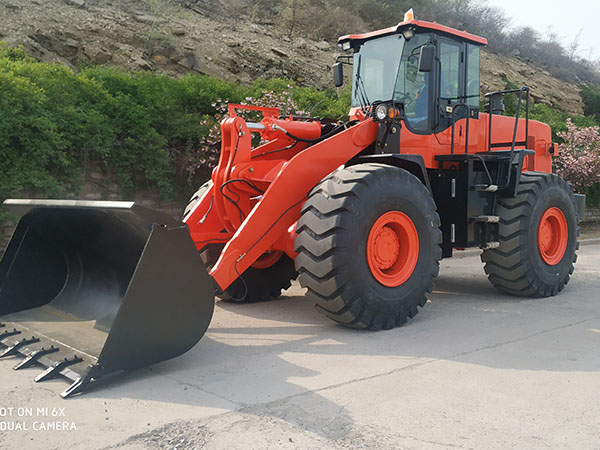

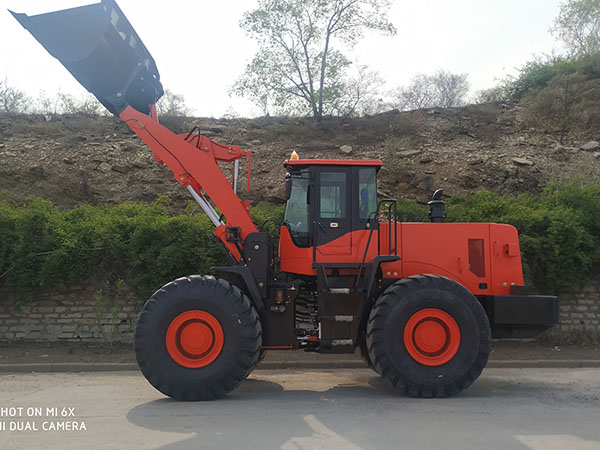

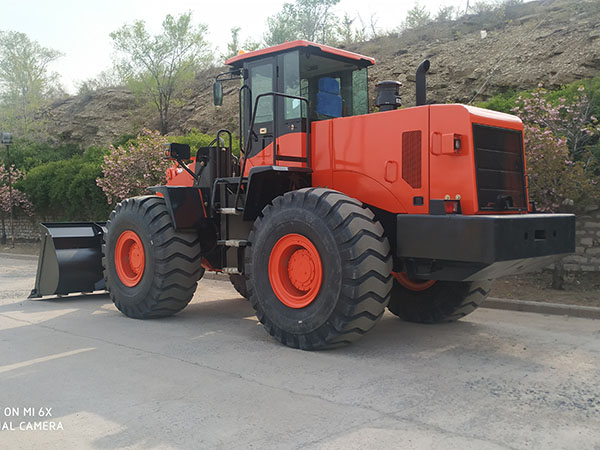

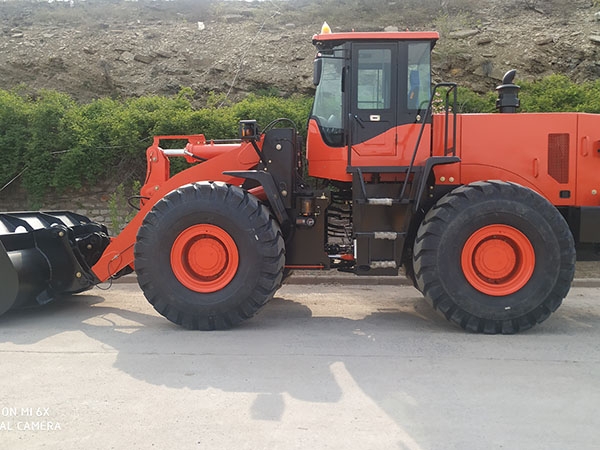

a整機照片01

一、主要特點:main feature

1、全液壓先導操縱,輕便靈活,微動效果好。Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.

2、雙泵合流工作系統,同軸流量放大轉向,節能效果顯著。Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.

3、先進的鏟斗自動放平功能,操縱更加方便,降低了司機的勞動強度。dvanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

4、大功率渦輪增壓斯太爾發動機與加強加長型底盤和液壓系統完美配合,性能更可靠,更節油。Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

5、單翻斗缸,“Z”型轉斗機構,實現巨大挖掘力。Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.

6、適合于重工況作業的驅動橋,齒輪模數大,針對大作業量惡劣工況設計,耐久性強。Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.

7、加強型超大空間全景視野駕駛室,德國專業技術制造的彈簧減振優質沙發座椅,操作舒適安全。Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

t;font-family:"Tahoma","sans-serif";mso-fareast-font-family: Tahoma;color:#434343;background:#F2F2F2'>Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

<

性能Performance

1

額定載重量rated load

6000kg

2

整機重量overall    weight

18200kg

3

額定斗容量rated    bucket capacity

3.3m3

4

最大牽引力maximum    tractive force

158KN

5

最大崛起力maximum    breakout force

204KN

6

最大爬坡能力maximum    grade ability

30℃

7

最大卸載高度maximum    dump height

3217mm

8

最大卸載距離maximum    dump reach

1156mm

9

整機外形尺寸overall    dimension (L×W×H)

7965×3050×3470mm

10

最小轉彎半徑minimum    turning radius

70200mm

發動機Engine

11

型號model

濰柴 Weichai Steyr    WD10G240E21

12

型式type

直列\水冷\干缸套\直噴

     lnline     water cooling dry cylinder     injection

13

氣缸數-缸徑×行程No. of cylinder-bore/stroke

6-126×130mm

14

額定功率rated    power

175kw--2200r/min

15

最大扭矩maximum    torque

950N.m

16

最低燃油消耗率min    fuel-consume ratio

≤208g/kw.h

傳動系統

     Transmission system

17

變矩器型式torque    converter

YJ375

18

變速箱型式    gearbox mode

動力換檔直齒常嚙Power    shift normally engaged straight gear

19

檔位數gear    shift

前進檔4個,倒退檔4個

     4 forward shift  4reverse shift

20

最高車速 maximum    speed

38km/h

驅動橋Drive axles

21

主減型式:main    reducing spiral

螺旋傘齒輪一級減速

     bevel gear grade 1reduction

22

輪邊減速型式decelerating    mode

一級行星減速

     planetary reduction,grade 1

23

軸距 wheel    base (mm)

3200mm

24

輪距 wheel    tread

2250mm

25

最小離地間隙minimum    ground clearance

450mm

液壓系統

     Hydraulic system

26

系統工作壓力system    working pressure

17MPa

27

動臂提升時間 boom    lifting time

6.05±0.25s

28

三項和 total    time

10.8±0.5s

29

油箱容量  fuel tank capacity

300L

30

鏟斗自動放平功能

     function of leveling automatically

有 yes

制動系統

     Brake system

31

行車制動 service    brake

氣頂油鉗盤式四輪制動

     air over hydraulic disc brake on 4 wheels

32

駐車制動 parking    brake

手動鉗盤式制動    manual parking brake

輪胎

     Tyre

33

規格type    specification

26.5-25

34

前輪氣壓 front    tyre pressure

0.4Mpa

35

后輪氣壓 rear    tyre pressure

0.35Mpa
