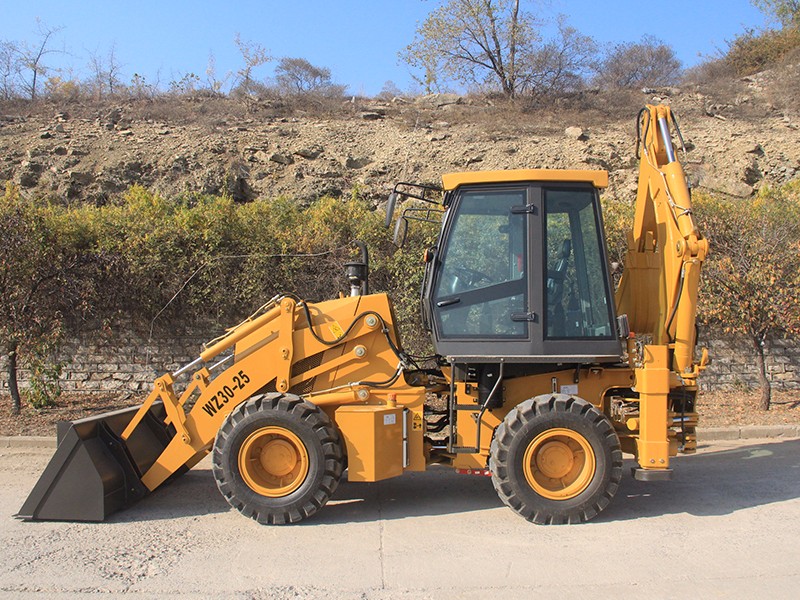

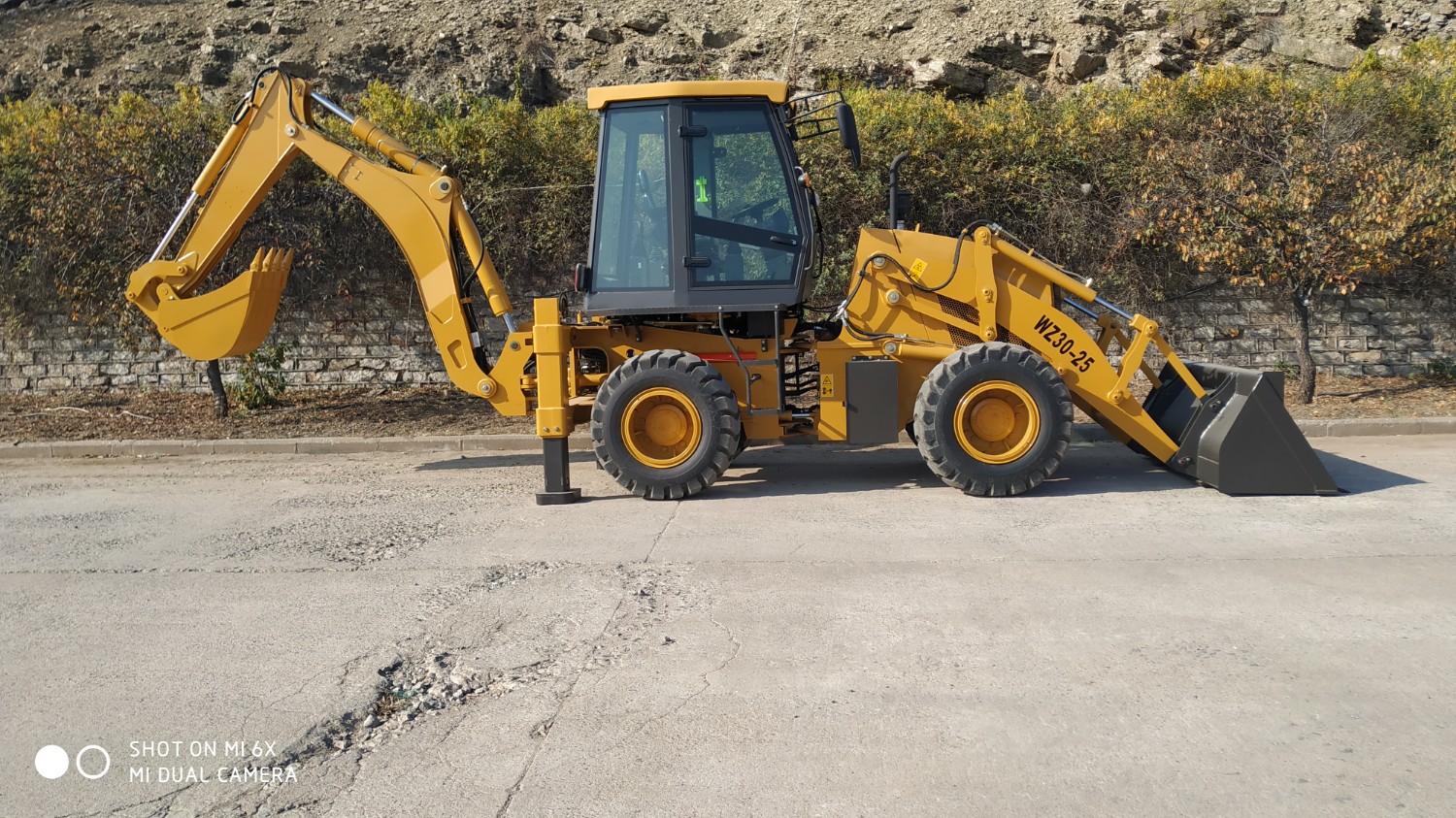

WZ30-25挖掘裝載機

WZ30-25挖掘裝載機

山東威猛工程機械有限公司

公司地址:山東省青州市南環路9567號

2019-12-3 1235

信息詳情



WZ30-25挖掘裝載機主要結構特點和采用的先進技術

性能特點:performance feature

1、采用中央鉸接式車架,轉彎半徑更小,機動靈活,側向穩定性好,便于在狹窄場地裝載作業。Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site.

2、裝載裝置外型參考當今世界先進水平的英國JCB公司的3CX型結構,挖掘裝置外型參考約翰迪爾公司的310SE型結構,外型美觀,駕駛室采用大面積玻璃,采光性好且視野開闊,司機操作。Loading device features refer to the world's advanced level of the British JCB 3 cx type structure, mining device features refer to John Deere 310 se type structure, beautiful shape, cab USES large area glass, good daylighting sex and vision, the driver operation more comfortable.

3、采用了氣頂油鉗盤式腳制動系統和外束型鼓式手制動器,制動安全可靠。With the gas cap oil pliers disc type foot brake system and external beam hand drum brakes, brake safe and reliable.

4、采用液力傳動結構,提高了傳動系統的可靠性。Adopts hydraulic transmission structure, improve the reliability of the transmission system.

5、采用了全液壓轉向,動力換檔變速,工作裝置液壓操縱。整機操作輕便靈活,動作平穩可靠。Adopts full hydraulic steering, power shift, working device hydraulic control. The operation of portable flexible, smooth and reliable action.

6、采用低壓寬基越野輪胎,后橋擺動,具有良好的越野性能和通過性能。Based on low voltage wide base off-road tires, driving axle swinging, good cross-country performance and through the performance.

7、能夠側向滑移的挖掘工作裝置,使挖掘范圍更大,適用范圍更廣。To the excavation of lateral sliding device and the excavation scope is bigger, a wider range of application.

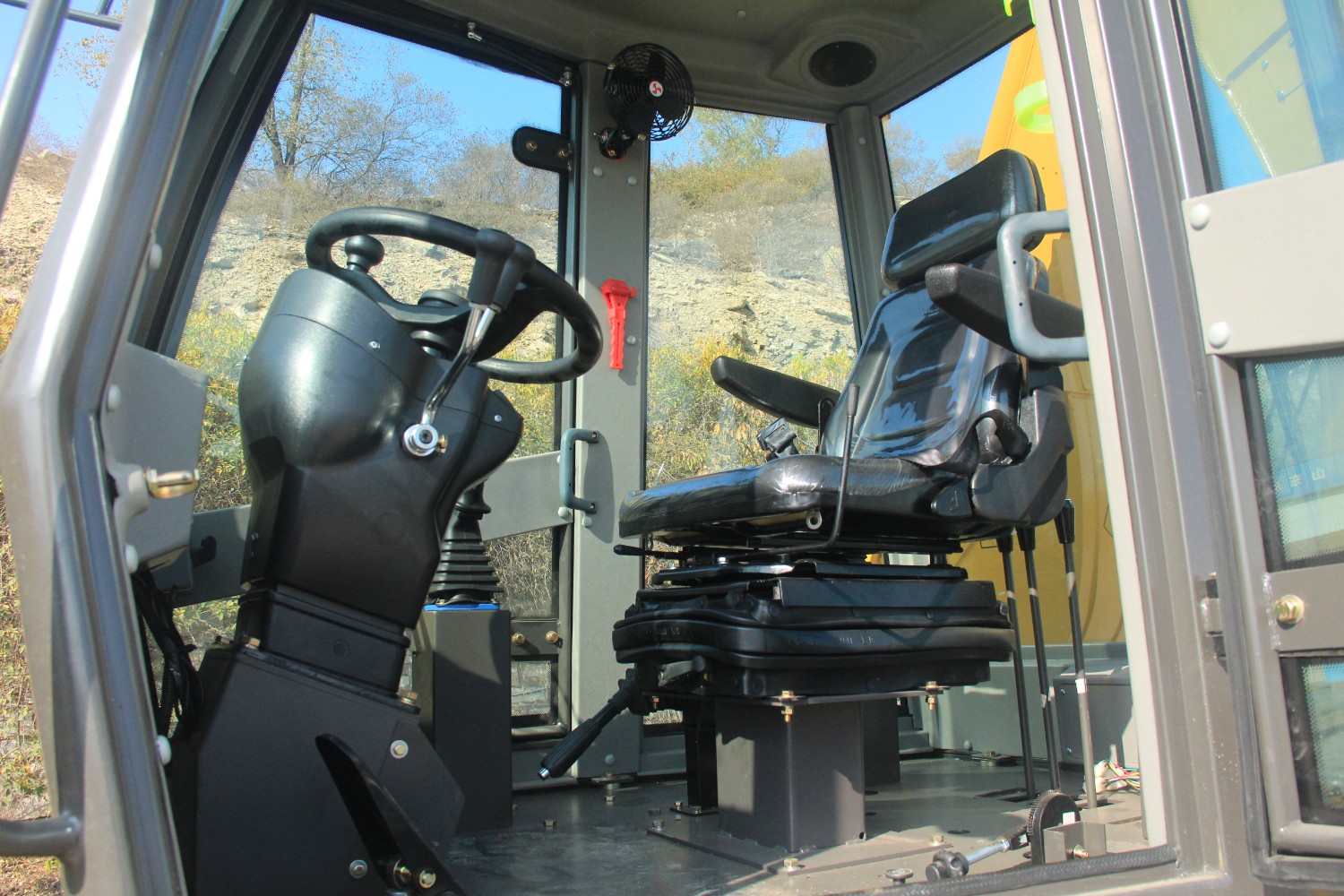

8、采用了懸浮減震式360·旋轉座椅,并帶有扶手及安全帶。Adopted 360  damping suspension type rotating seats, with the armrest and seat belt, improves the comfort and safety of the driver.

9、機/柴油箱加油位置方便,并容易觀察油位。Machine/diesel tank refueling location convenient and easy to observe the oil level.

WZ30-25技術參數
           The Main    Performance Parameter of Backhoe Loader WZ30-25

整機操作重量Overall    Operating Weight

7640KG

輪邊減速型式Final    Reducer

一級輪邊減速Single    Stage Final Reducer

運輸尺寸Transport    Dimension

額定橋載荷Rated    Loader of Axle

7.5t

長×寬×高mm    L*W*H

5910×2268×3760

傳動系統Transmission System

軸距 Wheel    base

2250mm

變矩器Torque    Converter

最小離地間隙 Min.    Ground Clearance

300mm

型號Model

YJ280

裝載斗容 Bucket    Capacity

1.2m3

型式Type

單級、單相三元件Single-stage    Three Elements

掘起力Breakout    Force

38KN

最高效率Max.    Efficiency

84.4%

裝載舉升能力Loading    Lifting Capacity

2500KG

進口壓力Inlet    Pressure

0.4Mpa—0.55 Mpa

鏟斗卸載高度Bucket    Dumping Height

2742mm

出口壓力Outlet    Pressure

1.2Mpa—1.5 Mpa

鏟斗卸載距離Bucket    Dumping Distance

1062mm

冷卻方式Cooling    Method

油冷壓力循環Oil-cooling    Pressure Circulation

鏟挖深度 Digging    Depth

52mm

變速箱Gearbox

反鏟斗容Backhoe    Capacity

0.3m3

型式Type

定軸式動力換檔Fixed    Shaft Power Transmission

最大挖掘深度Max.    Digging Depth

4082mm/4500mm/

     5300mm

離合器操縱油壓Oil    Pressure of Clutch

1373Kpa—1569 Kpa

挖斗回轉角Swing    Angle of Excavator Grab

190o

檔位數Gears

前進2檔,后退2檔Two Gears Ahead, Two Gears Astern

最大牽引力Max.    Pulling Force

39KN

最高車速Max.Speed

22Km/h

發動機Engine

輪胎Tyre

型號Model

CYD     YC4A105Z-T20

規格Model

16/70-20

型式Type

直列、直噴、四沖程、直噴燃燒室In Line Direct injection Four-Stroke and Injection Combustion Chamber

前輪氣壓Pressure    of Front wheel

0.22 Mpa

氣缸數-內徑*行程Cylinder-Inside Diameter*Stroke

4-102×120

后輪氣壓Pressure    of Back Wheel

0.22 Mpa

額定功率Rated    Power

75KW

制動系統Brake    System

額定轉速Rated    Speed

2200r/min

行車制動Service    Brake

氣頂油鉗盤制動Air    Over Oil Caliper Brake

最低燃油率Min.    Fuel Consumption

≤216g/km.h

外置式External    Type

最大扭矩Max.Torque

≥410N.M/1500r/min

自調節Self-regulation

排量Displacement

3.9L

自平衡Self-balance

轉向系統Steering System

駐車/緊急制動Emergency Brake

操縱力實施制動Operation    Power Implementing brake

轉向器型號Model    of Steering Device

BZZ5-250

手操縱力解除制動Manual    Operation Power Terminating Brake

轉向角Steering    Angle

±36 o

液壓系統Hydraulic System

最小轉彎半徑Min.    turning radius

5018mm

挖斗挖掘力Digging    Power of Excavator Grab

46.5KN

系統壓力Pressure    of the system

18Mpa

斗桿挖掘力Digging    Power of Dipper

31KN

驅動橋Axle

鏟斗提升時間Bucket    Lifting Time

5.4S

生產廠家Manufacturer

肥城車橋廠Feicheng    Axle Factory

鏟斗下降時間Bucket    Lowering Time

3.1S

主傳動型式Main    Transmission Type

雙級減速式Double    Reduction

鏟斗卸載時間Bucket    Discharge Time

2.0S

輪距Wheel base

1640mm

油箱容量fuel    tank capacity

90L
